Have you ever wondered what makes a Formula 1 car so extraordinary? These machines are not just cars; they are engineering masterpieces designed to conquer the limits of physics. Through this article, we’ll explore the key aspects of a Formula 1 car: its aerodynamics, suspension systems, brakes, hybrid engines, and even its iconic steering wheel. Let’s see why these vehicles are considered the most advanced on Earth. And by the end, we might challenge ourselves: could Formula 1 be the future of transportation?
The Steering Wheel: The Driver’s Command Center
One of the most distinctive features of a Formula 1 car is its unique steering wheel, which is far from round. Unlike regular cars, Formula 1 cars don’t need you to turn the wheel all the way around; a little rotation is enough to steer, thanks to their responsive systems. This is why the wheel’s compact, cut-off shape fits neatly into the cockpit, giving the driver maximum control in minimal space.
Also, the steering wheel isn’t just for steering. It’s got buttons and knobs for critical functions, like adjusting the brake balance, communicating via radio, or activating the Drag Reduction System (DRS). There’s even a water button, connected to a straw in the driver’s helmet, because staying hydrated during a race is crucial.
Aerodynamics: Sculpting the Air

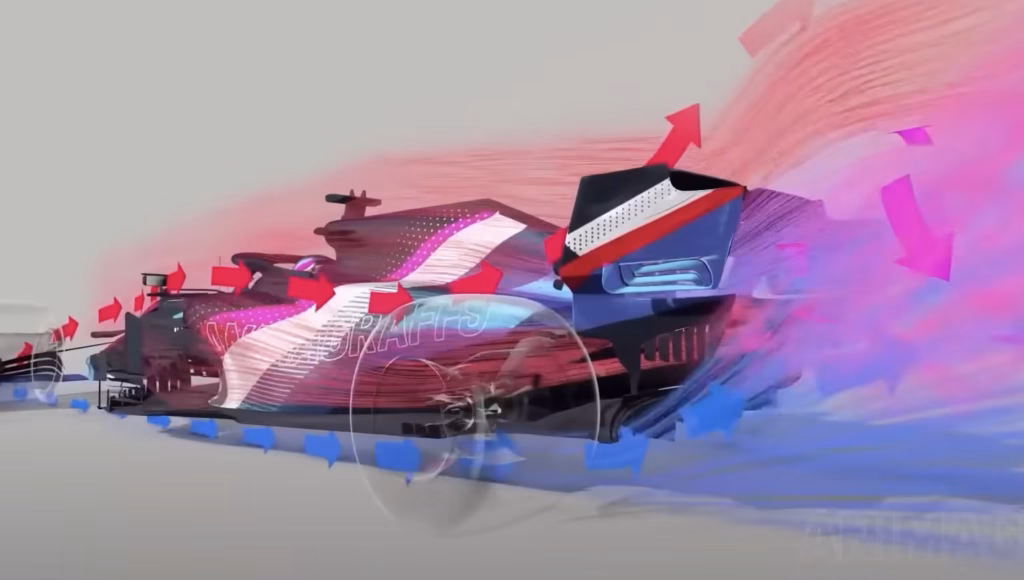

Aerodynamics is probably the most important thing in a Formula 1 car, with the whole design based on managing airflow to maximise downforce, which pushes the car onto the track for better grip. This is done by manipulating high-pressure zones above the car and low-pressure zones beneath it.
The front wing plays a central role, curving the air upward and generating a difference in pressure. This force, known as downforce, increases the car’s stability at high speeds. But the air around the car also creates turbulence, which slows it down. So engineers work hard to minimise these vortices with complex wing designs and side bar structures.
One of the most impressive technologies is ground effect, where the underside of the car creates a vacuum effect, sucking the car closer to the ground. Since 2022, regulations have allowed teams to refine this technique, making today’s cars even more stable when going round tight corners.
Suspension Systems: A Balancing Act
The suspension system of a Formula 1 car is vastly different from what we find in road cars. The primary goal here is to optimize the car’s stability, aerodynamics, and grip on the track.

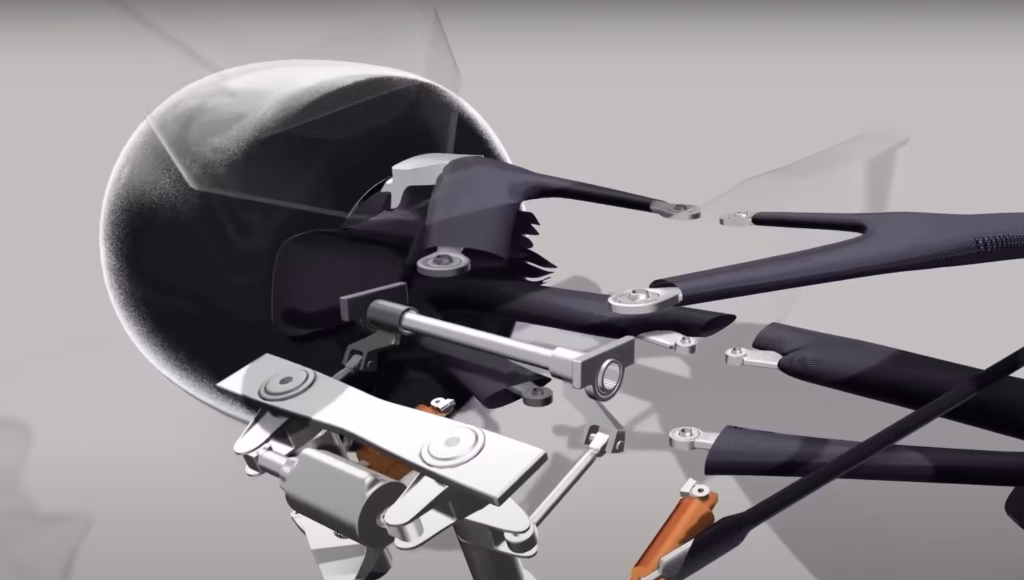

Formula 1 suspensions use double wishbones, which are arms that connect the wheels to the chassis. These are linked to torsion bars—a type of spring that twists to absorb energy. Additionally, the system includes anti-roll bars to prevent excessive tilting during cornering and anti-dive systems to maintain balance during acceleration or braking.
Such precise engineering ensures that the car remains flat and controlled, even at speeds exceeding 300 km/h.
The Braking System: Extreme Performance
Your car’s brakes might feel impressive, but they’re nothing compared to the carbon–based braking systems of a Formula 1 car, which can endure incredible forces and temperatures.
Each car has two brake circuits: one for the front wheels and another for the rear. This setup lets the driver adjust the brake balance electronically, tailoring it to the specific demands of each track section. They’re also integrated with the car’s energy recovery systems to convert heat into electric power, enhancing efficiency.

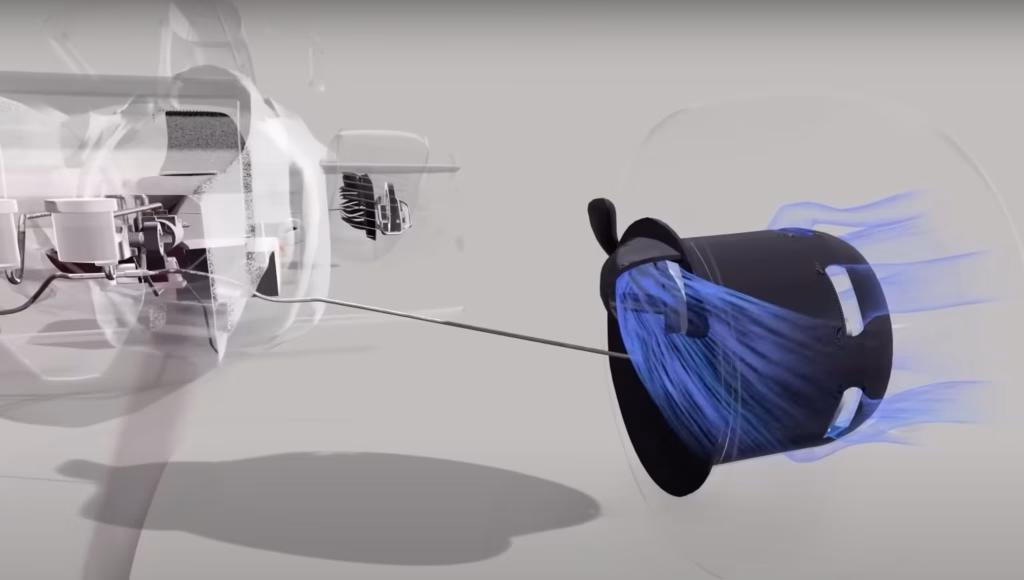

The brakes’ cooling systems are just as impressive, featuring ventilated carbon discs with hundreds of small holes to dissipate heat, ensuring the brakes remain functional even during the most demanding conditions.
Power Unit: The Heart of a Formula 1 Car
Today’s Formula 1 cars are hybrid vehicles, combining a 750-horsepower V6 engine with a powerful electric motor to produce over 1,000 horsepower. These engines are designed for maximum performance, operating at speeds exceeding 15,000 revolutions per minute.
Air intake is a crucial part of the system. Cool air enters through ducts near the cockpit, gets compressed, and is fed into the engine to produce explosive power. The turbocharger and intercooler ensure this process remains efficient, even under extreme conditions.
An innovative feature is the Energy Recovery System (ERS), which includes two components: the MGU-K (kinetic energy recovery) and the MGU-H (heat energy recovery). Together, they convert wasted energy into electric power, which is stored in the car’s battery. This electricity can then be deployed for a speed boost, providing an additional 160 horsepower during overtakes.
Drag Reduction System (DRS): Engineering Speed
The DRS is another technological marvel. When activated, a portion of the rear wing flattens, reducing drag and allowing the car to reach higher speeds. This system is particularly useful during overtaking, giving the trailing car a significant speed advantage.
Introduced to make races more exciting, the DRS has transformed the way drivers approach strategy. It’s a reminder of how technology doesn’t just support performance but also enhances the spectacle of the sport.
The Science of Fuel and Efficiency
Fuel in Formula 1 is not just about power; it’s also about efficiency. Each car carries a Kevlar-reinforced fuel cell, capable of holding up to 150 liters. Surprisingly, these cars only manage 2.55 km per liter—a stark contrast to our road cars.
Even the fuel system is highly specialized, with baffles inside the tank to prevent sloshing and maintain stability during high-speed maneuvers. This meticulous design ensures that the fuel supply remains consistent, even under extreme conditions.
The Future of Formula 1 and Automotive Innovation
Formula 1 has always been a testing ground for the latest tech, with loads of advancements, like hybrid engines and aerodynamics, eventually making their way into regular cars.
But with sustainability becoming a global priority, Formula 1 faces a challenge: can it balance its pursuit of speed with the need for environmental responsibility? Hybrid engines are a step in the right direction, but maybe the sport needs to go further and embrace electric technology. Could we see an all-electric Formula 1 championship one day? While some purists might not like it, innovation has always been at the heart of this sport. Formula 1 isn’t just about races; it’s about solving complex engineering problems in real-time. From the steering wheel to the hybrid engines, every detail shows off human ingenuity at its best. But as we move forward, the sport has to adapt to a world that demands both performance and sustainability. As an engineer and a fan, I find this dual challenge thrilling, and I hope Formula 1 continues to lead the way in shaping the future of transportation.
