The concept of invisibility has captivated human imagination and evoked notions of magical powers throughout history. Stories of mythical cloaks rendering the wearer unseen abound in legends and folklore across cultures. However, the scientific principles behind manipulating light to conceal macroscopic objects have only recently begun to be unravelled.
As increasing control is gained over the fundamental properties of matter on the nanoscale, the dream of flexible, functional invisibility cloaks edges closer to reality [1].
Materials and metamaterials engineered with precisely defined nanoscale features can now interact with light waves in extraordinary ways inconceivable with naturally occurring substances [2,3]. Optical camouflage solutions blending augmented reality with adaptive projections onto designed surfaces also show promise for practical obscuration under specialized conditions [4].
Physics of Invisibility Cloaking
The quest for invisibility cloaking devices rests on the advanced application of physics principles governing the behaviour of light. Radiated energy transported by electromagnetic waves must be precisely controlled as it interacts with artificially engineered materials and metamaterials [3,5].
Snell’s law describes the angle of refraction taken by a light ray passing between media based on the ratio of refractive indices. Carefully tuning these indices with nanoscale structures creates the key optical effects needed for cloaking. Graded variations in refractive index can continually bend light to flow around a concealed region, reconstituting wavefronts on the far side to minimize shadows and optical distortions that would reveal an object’s presence [5,6].
Other critical factors are the material absorbance dictating light intensity attenuation and the impedance matching at boundaries affecting reflection [1,7]. Ideal cloaks guide waves through a hidden zone without attenuating power, while equalizing impedance on all interfaces to eliminate reflections over the entire frequency spectrum of interest.
For thermal infrared wavelengths, controlling electromagnetic surface waves along material-air boundaries also becomes necessary to match emissivity and hide heat signatures [8]. Additional elements of cloaking device design must counteract tradeoffs between cloaked volume, loss of phase information, and vulnerability to scattered light outside specific conditions [1,9].
Carbon Nanotube Cloaking Strategies
Early work on invisibility cloaking drew inspiration from naturally occurring optical mirages. Superior control over matter at the nanoscale has since allowed engineered materials to surpass these visual illusions. Vertically aligned carbon nanotube arrays presenting strong broadband optical anisotropy constitute one promising class of metamaterials [10-12].
Upon integrated resistive heating, thermal expansion of air between extremely tall, dense carbon nanotubes leads to marked gradients in refractive index. Carefully tuning this thermal actuation dynamically steers light around objects placed underneath, functionally demonstrating mirage effects useful for cloaking [10,13].

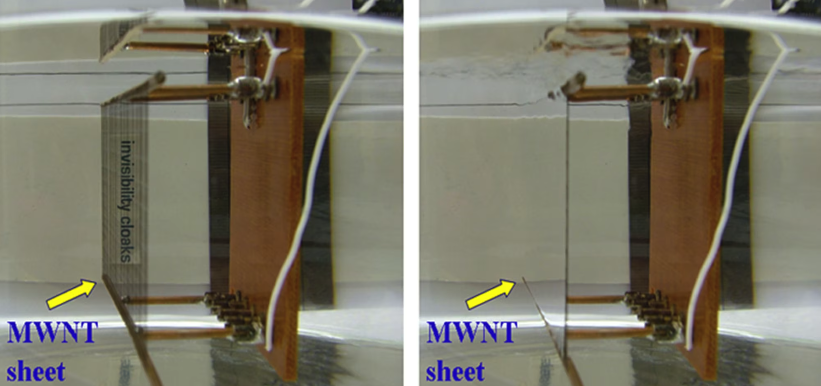

For example, researchers at the University of Texas, Dallas electrically heated centimeter-scale carbon nanotube sheets above 2 cm thick air gaps. Hot suspended nanotubes caused light bending up to 10 degrees over broadband visible and near-infrared wavelengths. Placing items in the air gaps rendered them partially invisible from certain angles during heating, while visible beforehand [13].
Ongoing work focuses on optimizing nanotube structures for invisibility performance based on sheet thicknesses, air gap dimensions, applied voltages and resistive heating profiles [12]. Larger angular deflections up to 30 degrees would allow hiding unmodified objects from more viewing positions. Leveraging reversible electrothermal actuation mechanisms sets carbon nanotube implementations apart from other static cloaking approaches requiring complex metamaterial fabrication [10,14].
Metamaterial Invisibility Cloaks
Metamaterials are artificial structures engineered on sizes smaller than the wavelengths of interest to achieve extraordinary electromagnetic properties absent in natural materials [2,3]. Split ring resonators, chiral nanomaterials, tunable liquids and phase change media represent just a few metamaterial classes now actively studied for invisibility cloaking applications [1,15].
A particularly promising category relies on the negative refractive indices achievable in metamaterials to bend, trap or guide light waves along unconventional trajectories to conceal objects [1,3]. Instead of the strictly positive indices found in all-natural optical materials, metamaterials present negative permittivity and negative permeability leading to negative index behaviour.
Mathematically, negative refraction enables transforming spherical wavefronts within the hidden interior region into plane waves emerging from the opposite side. This guides light around the cloaked zone with no scattering while recovering the original propagation direction [5,6]. Ideally, such coordinate transformations would work flawlessly over all wavelengths and viewing angles [6,7].
In 2006, a team led by Duke University’s David Smith designed and tested the first metamaterial with negative index at microwave frequencies [2]. While not yet practically invisible, this structured array of repeating metallic split-ring resonators and wires demonstrated negative refraction deflecting incident microwaves around large enough radii to detect the concealed volume. Ongoing work extends such concepts with more advanced nanofabrication into infrared and visible frequencies [3,15].
Augmented Reality Optical Camouflage
Rather than truly eliminating all scattered light and electromagnetic signatures, optical camouflage offers an alternative approach using augmented reality techniques to cloak texture, shape and surface details [4,16]. Aligning directional viewing dependencies in effect hides revealed objects in plain sight.
Optical camouflage systems project background scenes onto fabric covering subjects positioned in front of the actual backgrounds. Display elements adaptively update the projected imagery as subjects move to synchronize with the appropriate vantage point [16]. The combined effect transmits surrounding light through subjects so they seem to blend seamlessly into the background.
Early academic prototypes used retroreflective fabrics covering models to return projected images from precisely aligned video projectors straight back toward tracking camera elements [17]. Commercial variants such as those marketed by Vollebak rely on flexible e-ink displays printed onto garments. Photovoltaic films help power the low-energy e-ink screens updating at video rates to render wearers partially optically camouflaged [18].
Unlike other cloaking techniques, optical camouflage does not eliminate shadows or conceal subjects from all possible angles. Side views in particular may expose shapes breaking the illusion. Nonetheless, aligned viewing can persuasively camouflage texture, contour and surface details against Complex backgrounds across the visible band for stationary or slow-moving subjects [4,18]. Practical applications range from fashion and art to hunter concealment.
Ongoing Research and Development
Despite remarkable progress, most demonstrated cloaking capabilities still fall far short of fully hiding macroscopic objects from all viewing positions and light wavelengths. Ongoing interdisciplinary research aims to address persistent challenges including further miniaturization, efficiency, scalability, and manufacturability [9,15].
The selection of materials and metamaterials with ideal refractive indices and impedance-matching characteristics poses difficulties. Nanofabrication constraints introduce energy losses and restrict concealed volumes for metamaterial cloaks [5]. Thermo-optic nanomaterials like carbon nanotube sheets still require large power inputs limiting mobility [14]. Other approaches must balance directional dependencies against perceived invisibility efficacy [4,17].

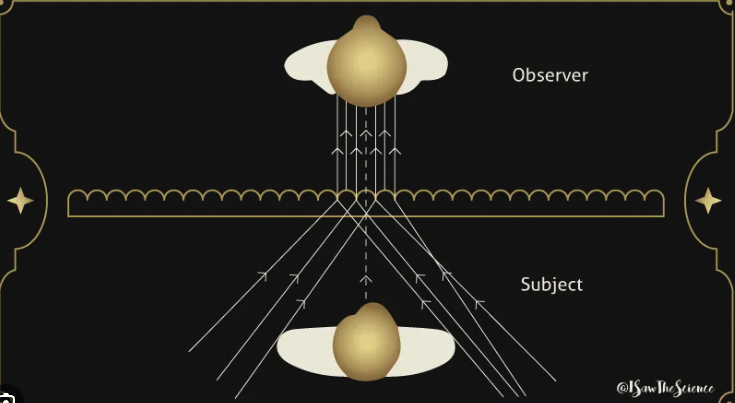

Researchers also continue investigating novel cloak implementation concepts. For example, a Canadian startup called Hyperstealth Biotechnology patented an ingenious idea for modular quantum stealth panels. Proposed orientations of LCD elements between flexible surface layers could render contents invisible from select angles, without fully surrounding enclosed subjects [19].
Additional research recently described hopes for distributed metasurfaces possibly composed of phase change materials. Desired electromagnetic wave manipulations would derive from ultra-precise structural alterations across such patterned two-dimensional metamaterials [15]. If made sufficiently efficient, dynamic and scalable, such panels could perhaps distantly recall Harry Potter’s mythical cloak!
Conclusion
Invisibility cloaking has progressed from science fiction fantasy to a plausible future engineering feat grounded in advanced applications of nanophotonics, materials science and electromagnetism principles. Though significant research obstacles remain before practical adoption, rapidly reported innovations inspire optimism that flexible, efficient, adaptable cloaking systems could be achieved within our lifetimes. Perhaps one day camouflage suits perfected by interdisciplinary scientific teams may approach capabilities only dreamed about in movies or magical myths. But much work across specialities ranging from chemistry to quantum physics is still needed to distil such speculative visions into rugged, mobile platforms ready for real-world deployment.
