Challenger O-Ring Temperature: A 17-Degree Margin NASA Ignored

Roger Boisjoly saw it coming. Six months before Challenger disintegrated, the Thiokol engineer wrote an internal memo warning that unresolved seal problems in the solid rocket booster could cause “a catastrophe of the highest order — loss of human life.” That wasn’t a hunch dressed up as prophecy. It was a conclusion built on hard data about how rubber behaves when it gets cold.

Most retellings of the Challenger disaster stop at human failure — managers who overruled engineers, a culture that punished bad news. But the Challenger O-ring temperature story is really a physics story with an exact number attached to it. On 28 January 1986, NASA didn’t approve a vague risk; it approved flying 17°F colder than the only cold-weather data point the shuttle program had ever flown, launching at 36°F against a documented 53°F safety floor.

The Challenger O-Ring Temperature Floor: 53°F

That floor wasn’t theoretical. In January 1985, mission STS-51C flew at a chilly 53°F — the coldest launch the shuttle program had ever attempted. Post-flight inspection found significant erosion on the solid rocket booster’s O-rings, the rubber seals that keep pressurized, superheated gas from escaping between the booster’s metal segments — erosion being the literal burning-away of ring material by hot gas that got past the seal.

That single flight became the only cold-weather evidence NASA’s engineers had, and it set 53°F as the line below which nobody could honestly say the joint would hold. Absent that one data point, NASA had zero qualification data below 53°F — no ground test firings, no prior missions, nothing.

In safety-critical engineering, a material’s “qualified range” is only as wide as the conditions it has actually been proven in. Step outside it and you are not extrapolating a trend; you are guessing, with expensive hardware and a crew attached. This is the distinction that gets lost every time the story is told as a clash of personalities.

The Night the Forecast Fell to 30°F

The evening before launch, a teleconference of NASA and Thiokol engineers reviewed a forecast overnight low as cold as 30°F. Roger Boisjoly and four Thiokol colleagues recommended against launching, citing exactly that erosion history from STS-51C. Thiokol vice president Jerry Mason overruled them, reportedly telling engineer Robert Lund to “take off your engineering hat and put on your management hat.” The no-launch recommendation was reversed within hours.

Read that sentence again, because it is the hinge of the whole disaster. It is not an instruction to weigh risk against cost — engineers do that constantly and openly. It is an instruction to stop reasoning from the data and start reasoning from the schedule. The 53°F floor didn’t move that night. Only the authority to enforce it did.

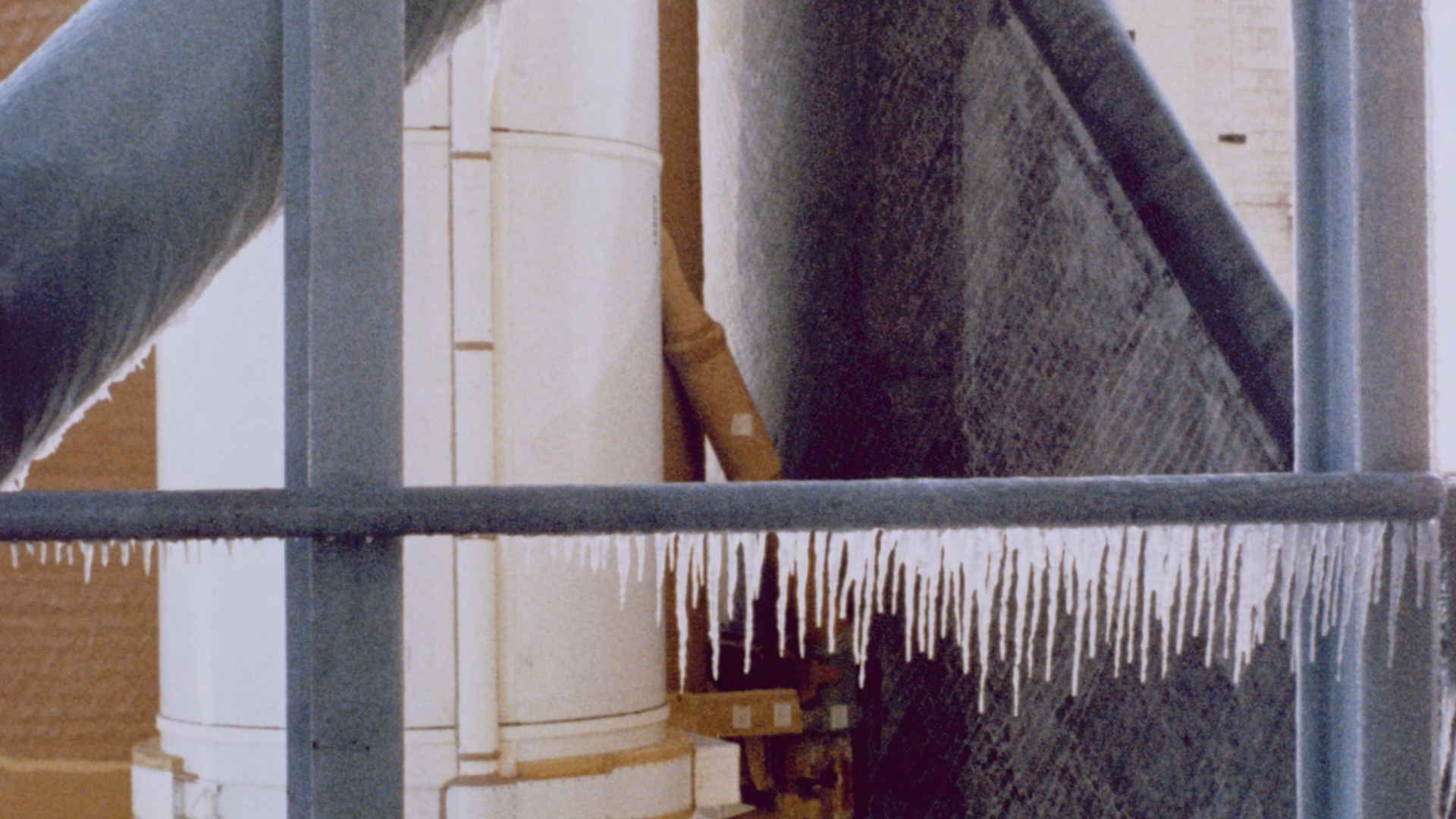

By morning, the air at Kennedy Space Center had warmed slightly — to 36°F, the coldest temperature the shuttle had ever launched into, and a full 17°F below the floor STS-51C had established. Challenger lifted off anyway. Seventy-three seconds later, the vehicle broke apart in the sky over the Atlantic.

Why an O-Ring Has to Behave Like a Spring, Not a Brick

A solid rocket booster is built in segments, joined together and sealed by rubber O-rings squeezed into a groove called a field joint. When the engine ignites, pressure spikes and briefly flexes that joint open by a fraction of an inch. The O-ring’s job is to expand and re-seal the gap within milliseconds — a property engineers call resilience — or hot combustion gas “blows by” the seal entirely.

Note what that requires. The ring is not asked to be strong, or tough, or heat-resistant in the way intuition suggests. It is asked to be fast. A seal that eventually recovers its shape is worthless if the gap it was meant to fill opened and closed in the time it took to react.

Resilience is exactly where cold rubber betrays you. The O-ring’s synthetic rubber compound, a fluoroelastomer, stiffens as it nears its roughly 53°F working floor, and its snap-back time stretches out precisely when it can least afford to. Richard Feynman demonstrated this live during the Rogers Commission hearings: he clamped a small sample of the O-ring material, dropped it in ice water, released the clamp — and the rubber stayed flattened instead of springing back.

It was proof, in real time, on television, that the material had simply stopped behaving like a spring in the cold. No modelling, no statistics, no argument about organisational culture — a clamp, a glass of ice water, and a piece of rubber that refused to move. It remains the most devastating experiment ever performed at a press conference.

At 36°F ambient, the joint hardware itself sat colder still, chilled by the supercooled propellant tanks mounted right alongside it. Whatever its exact temperature, the direction only ever pointed one way: colder rubber, slower resilience, a wider window for gas to escape during ignition. That’s the same brutal physics engineers now manage deliberately at facilities like CERN, where materials are pushed to temperatures near absolute zero — but only inside systems engineered from the start to survive that stiffening, not bolted to a launch pad wrapped around exploding propellant.

What the Challenger O-Ring Temperature Gap Would Have Cost

Here is the part that still stops me cold. The counterintuitive truth is that 53°F was never a feeling — it was the only cold-weather flight data NASA had, full stop. Waiting for the temperature to climb back over that line wasn’t a philosophical hedge; it was a concrete, numeric threshold that had already been crossed once, on a mission that came back visibly damaged.

So the counterfactual is almost insultingly cheap. A launch delayed by hours, even a single day, to let Florida’s morning warm past 53°F would have kept Challenger inside the only envelope anyone had actually flight-tested. Not a redesign. Not a new material. A wait.

Engineering history is full of these forks, where the physics was known and the schedule won anyway. Thomas Midgley’s decision to commercialize leaded gasoline is another case where the dangerous choice wasn’t really a chemistry problem — it was a decision made against data everyone already had access to. NASA would meet a gentler version of the same tension decades later, when supply constraints around plutonium-238 threatened to delay an entire outer-planets mission — and that time, the answer was to wait.

The lesson NASA drew was structural: modern launch-commit criteria treat a material’s tested limits as a hard gate, not a recommendation a manager can waive by changing hats. That discipline — treat the number as the number — is what keeps today’s extreme-environment engineering, from cryogenic accelerator magnets to spacecraft bound for the outer planets, from repeating Challenger’s arithmetic.

Boisjoly was right, and he was right in writing, six months early. The O-ring didn’t fail because nobody understood the physics. It failed because, for one cold morning in Florida, the physics stopped being the deciding vote.
